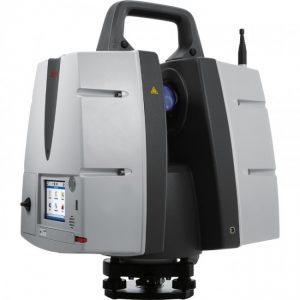

The recently released Leica ScanStation P50 offers the highest flexibility for all kinds of scanning projects thanks to its extended range. A longer range ScanStation means less number of setups and reduced field time delivering a quicker return on investment.
See our handy Leica ScanStation Comparison Chart to compare the P50, P40 & P30 specifications.
 |
 |
|
|
| MODEL | ScanStation P50 | ScanStation P40 | ScanStation P30 |
| DISTANCE MEASUREMENT | |||
| Maximum range | >1km | 270m | 120m |
| Maximum scan rate | 1 Mio Pts/sec | 1 Mio Pts/sec | 1 Mio Pts/sec |
| Selectable sensitivity levels | ✔ | ✔ | ✗ |
| Resolution settings | User definable | User definable | 0.8 mm to 50 mm at 10 m |
| Laser class | 1 | 1 | 1 |
| Dual axis compensator | ✔ | ✔ | ✔ |
| IMAGING SYSTEM | |||
| Internal camera | ✔ | ✔ | ✔ |
| HDR | ✔ | ✔ | ✔ |
| External camera | Optional | Optional | Optional |
| ENVIRONMENTAL | |||
| Operating temperature | -200C to +500C | -200C to +500C | -200C to +500C |
| Solid particle / Liquid ingress protection | IP54 | IP54 | IP54 |
| SURVEY / SETUP | |||
| Quick orientation | ✔ | ✔ | ✔ |
| Set azimuth | ✔ | ✔ | ✔ |
| Known backsight | ✔ | ✔ | ✔ |
| Resection | ✔ | ✔ | ✔ |
| Auto resection | ✔ | ✔ | ✔ |
| Traverse | ✔ | ✔ | ✔ |
| FUNCTIONALITY | |||
| Onboard target acquisition | ✔ | ✔ | ✔ |
| Check & Adjust | ✔ | ✔ | ✔ |
| One button scan control | ✔ | ✔ | ✔ |
| Scan area definition from video or scan | ✔ | ✔ | ✔ |
| Batch job scanning | ✔ | ✔ | ✔ |
| Upgrade options | ✗ | Upgrade to P50 | Upgrade to P40 |
If you are investing in scanning technology, talk to our team of technical specialists.
We’ll develop a solution that is right for your requirements and includes training, servicing and industry leading after-sales support.
Email us here to start the conversation or call 0800 453 422.
