Description

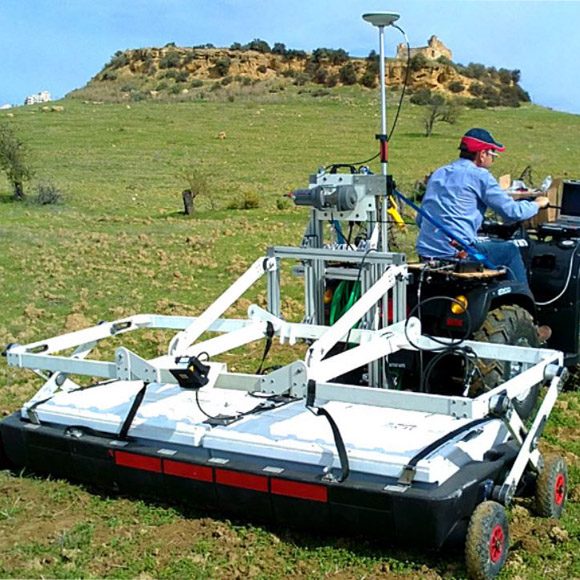

Stream X is a vehicle-towed ground penetrating radar solution with an array that covers a 2m wide swath with a single pass for extensive underground 3D mapping.
To achieve complete coverage of the survey area, multiple passes can be controlled through sophisticated positioning systems and a dedicated navigation software. Once the desired area is covered, the survey can be easily checked and then post processed with a dedicated IDS software platform.
Stream X is the ideal solution for 3D mapping of:
- Extensive archaeological sites
- Detection of underground structures
- Cavity identification and mapping
- Underground tank detection
- Area clearance prior to construction
Stream X Key Features:

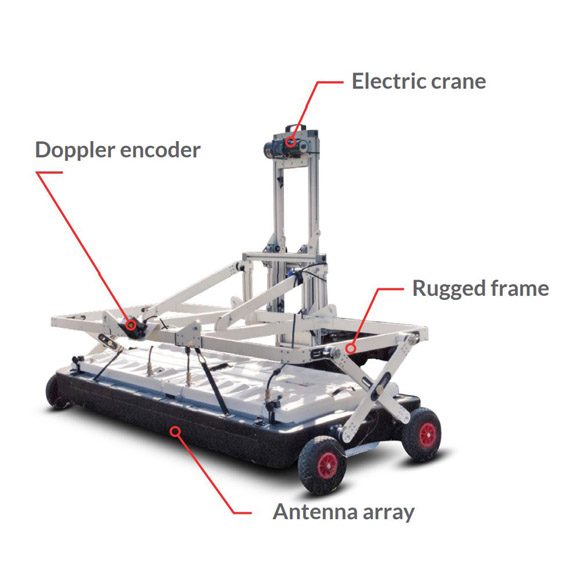

- Massive array of antennas: Stream X can be equipped with three different array configurations from 16 to 48 channels. A three times the closest spacing on the market, antenna spacing in the Stream X can be as little as 4 cm.
- Different frequencies (200 MHz or 600MHz): Stream X can be equipped with a 16 channel 200 MHz array in order to achieve the best penetration. Maximise resolution with a 24 – 48 channel 600 MHz array.
- Mechanical frame: A solid mechanical frame which has been tested in several rough terrain conditions and harsh environments.
- 3D tomography: The most defined underground 3D model currently available.
Benefits of the Stream X:
- Cost reductions in underground investigation procedures while also providing more information on what is buried underground;
- Increased performance: Able to detect the presence and shape of anomalies present in the soil;
- Fast and accurate survey even in rough terrain;
- High productivity: up to 1 hectare/hour and a dedicated post processing platform;
- Highest data resolution with an antenna spacing as low as 4 cm
