Description
The compact hand-sized GPR with dual polarization to never miss a detail in one scan
Construction and service companies together with civil and structural engineers can improve their safety by using C-thrue XS to quickly locate rebars, voids, post-tension cables, cavities, conduits, and any other objects buried in the structure before cutting or drilling into the concrete.

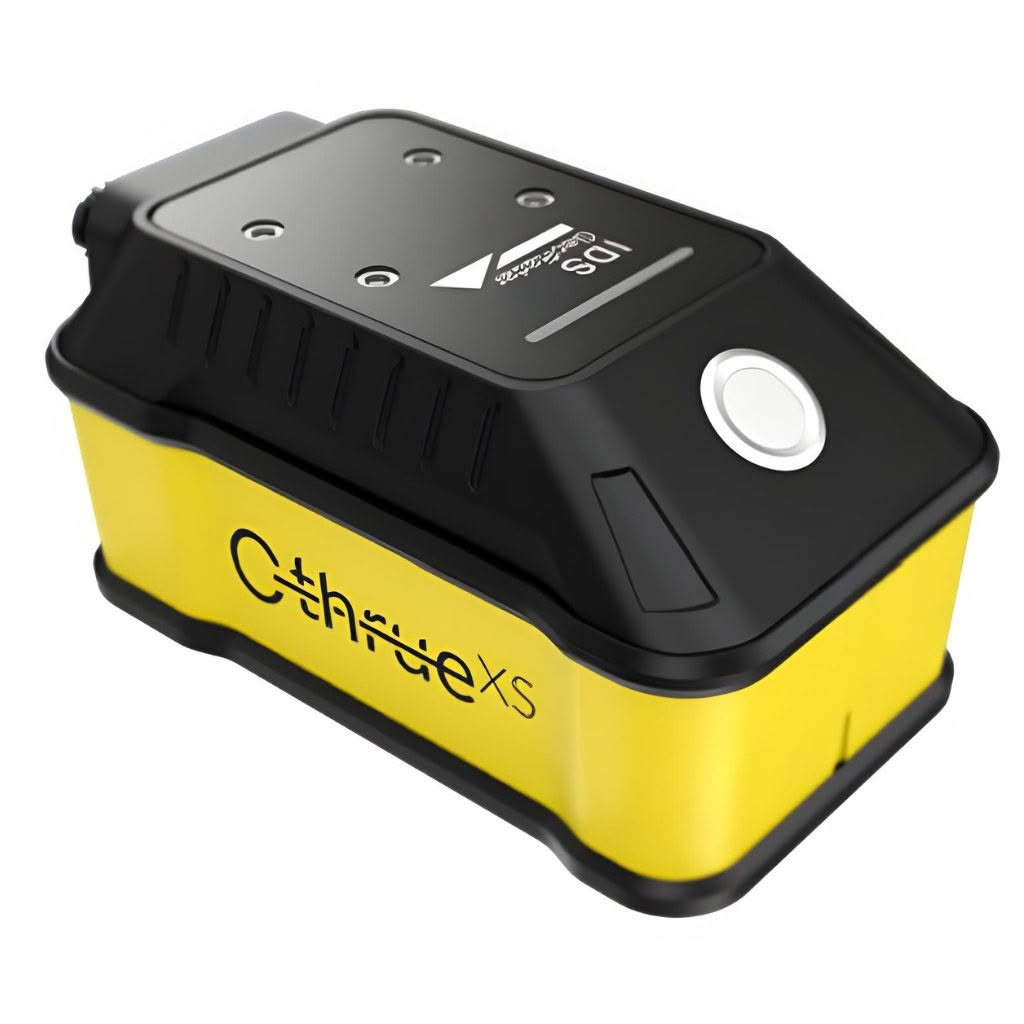

C-thrue XS, adding to the C-thrue product family, is the new compact hand-sized GPR with dual polarization to never miss a detail in one scan: the smallest and lightest antenna on the market capable of detecting both shallow and deep targets.
Dual antenna polarization: detect shallow and deeper targets in a single move.
C-thrue XS allows the most accurate scanning performance and real-time analysis of concrete structures with a hand-sized device able to perform in-depth inspections. C-thrue XS boasts a dual polarization radar technology (displaying both HH a VV channels), making this device capable of locating and identifying shallow and deep targets in a single swath with the maximum clarity of data leading to an optimal decision making.
Multiple configurations: stand- alone or integrated use
Offering the maximum flexibility, C-thrue XS is available in two configurations:

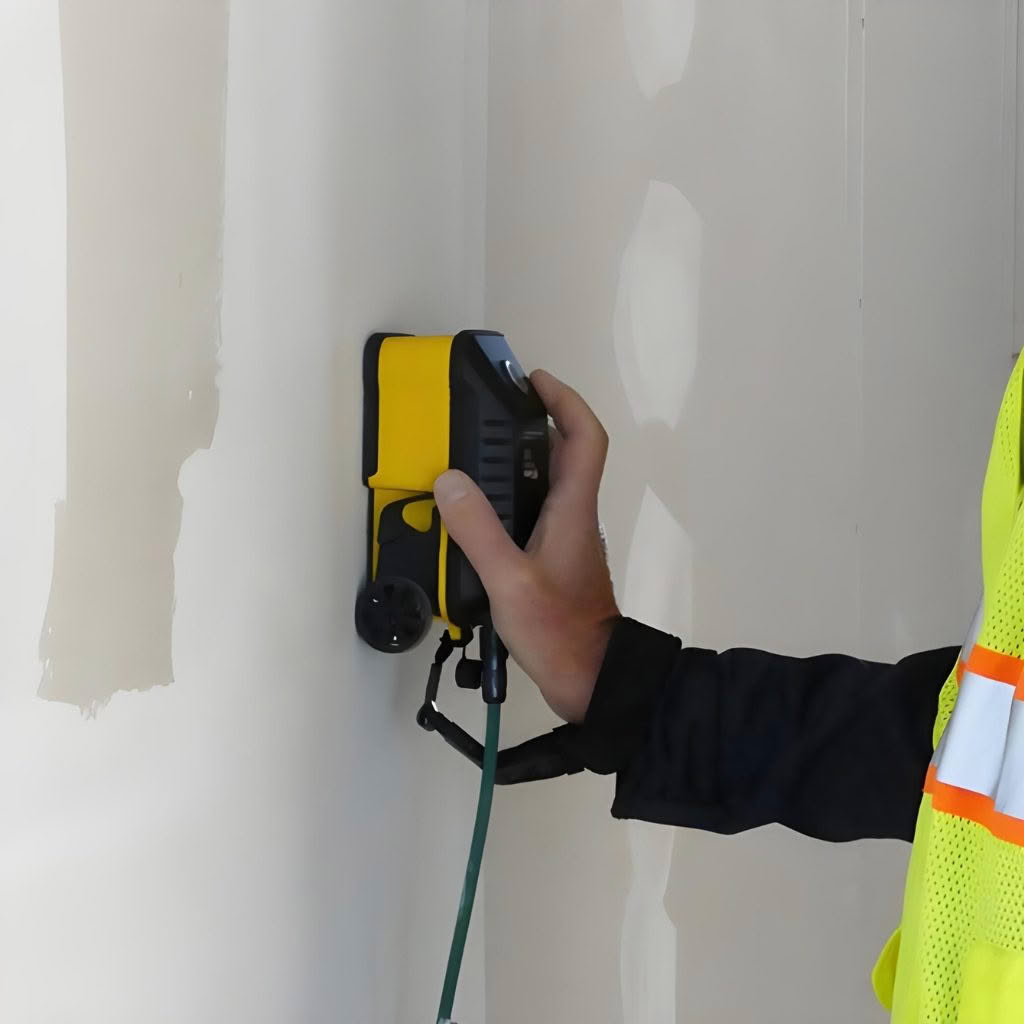

Standalone: Easily scan across any concrete inspection scenario with C-thrue XS and promptly visualize the collected data results on your tablet

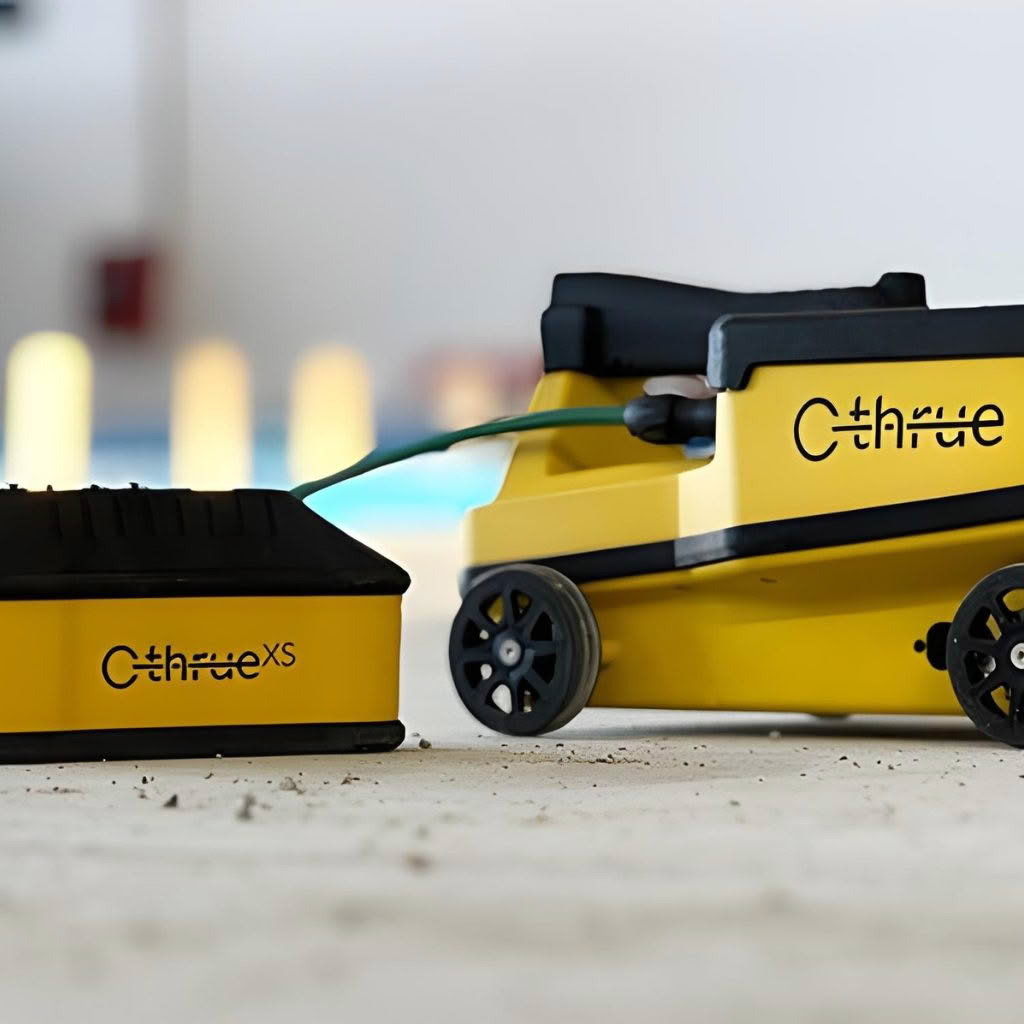

Integrated use with c-thrue: C-thrue XS’ combined use with C-thrue allows to cover any jobsite challenge and quickly visualize data on C-thrue’s multi-touch display
A compact and light telescopic pole and an external controller allow C-thrue to maximize its reach in concrete scanning operations across challenging locations: under a deck, along vertical walls or ceilings. C-thrue can also be used in combination with C-thrue XS – the smallest and lightest concrete scanning antenna on the market – to inspect constricted and difficult to reach spaces: pillars, corners and areas around obstructions.
NDT Reveal – Advanced GPR processing and imaging software
NDT Reveal is the professional CAD-based post-processing GPR software to analyze data collected with C-thrue and C-thrue XS devices. NDT Reveal software platform enables users to organize and share GPR data results for a comprehensive analysis of concrete inspections. With NDT Reveal users are able to:
- Manage different projects from different jobsites and locate GPR jobsite surveys on CAD files
- Display 2D and 3D GPR data and insert features (e.g. rebars, post tension cable voids and drill areas)
- Use tomographic map views (C-Scan) including radar scan fusion;
- Perform advanced targeting using radar-scan and tomographic view.
- Produce digital exports: DXF and DWG format
- Create job site reports with 2D and 3D GPR data of detected items, photos, sketches and CSV tables
