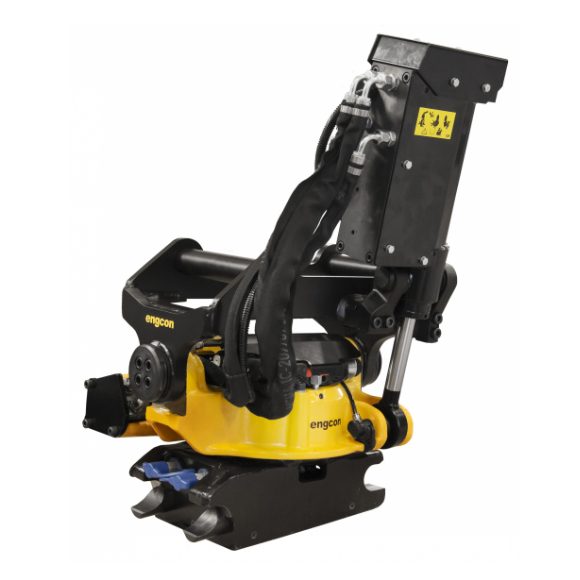

engcon Tiltrotator EC204 [2-4 tonne]

Description

Suitable for all excavators in the 2-4 tonne weight class.

The engcon tiltrotator EC204 has a tilt angle of 45 degrees and can be fitted with engcon’s proportional control system DC2, for stepless control with the highest precision and remote support via the mobile network.

Features:

• A single grease point for the entire tiltrotator; can also be connected to an excavators auto greasing system
• Extra outlet as standard equipment.
• Q-Safe quick hitch for maximum safety
• Comes standard with QSC locking system to avoid wrongly connected or dropped buckets
• Load-holding valves on tilt cylinders for maximum safety
• Hardened piston rods
• Rotation ∞
• ± 45° tilt

Quick hitch: Standard QS40

Control system: DC2 proportional control system for infinitely variable control with remote support capability, can be configured to control track/wheel steering, boom slew or most hydraulic functions from joystick rollers.

Electrical system: Standard 12-volt.

Accessory: Integrated gripper
