Description
The Leica iCON iCS50 simplifies layout and 3D measurement tasks with efficiency and precision. Its intuitive design ensures quick learning and easy operation.
Pairing it with the Leica vPole and vPen enhances its capabilities further. The vPole delivers tilt compensation and auto-height adjustment for greater accuracy and range, while the vPen ensures precise handling of short-range finishing tasks.
These tools work together to minimize time and errors, making the iCON iCS50 a reliable choice for both basic and advanced construction projects.
Combining the Leica iCON iCS50 sensor with construction-specific workflows, the solution complements the renowned Leica iCON build platform. It introduces groundbreaking 6DoF (six degrees of freedom) technology—previously exclusive to industrial measurement—making advanced capabilities accessible to all in construction.
Designed in collaboration with industry professionals, Leica iCON simplifies and accelerates layout tasks such as establishing foundation lines, setting out walls, and aligning services like piping and HVAC, enabling transformative efficiency and precision on every project.

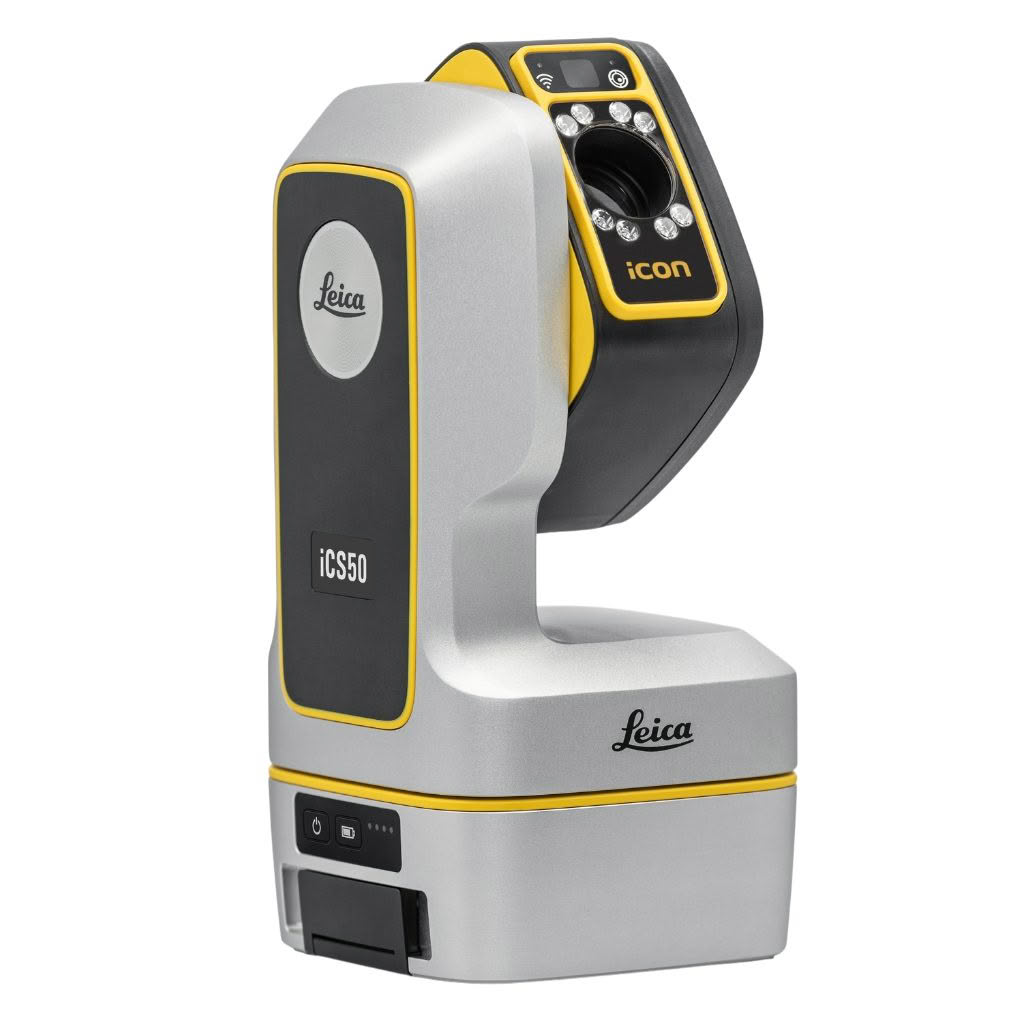

Leica iCON iCS50 – Features
- Compact robotic device
- Measuring range: 0.3 m – 50 m (250m option for setup)
- Angular accuracy: 3”
- 3D point accuracy (without reflector): 1.0 mm @ 10 m, 2.0 mm @ 50 m
- Very fast direct drives (180°/s)
- Fisheye camera for panorama pictures

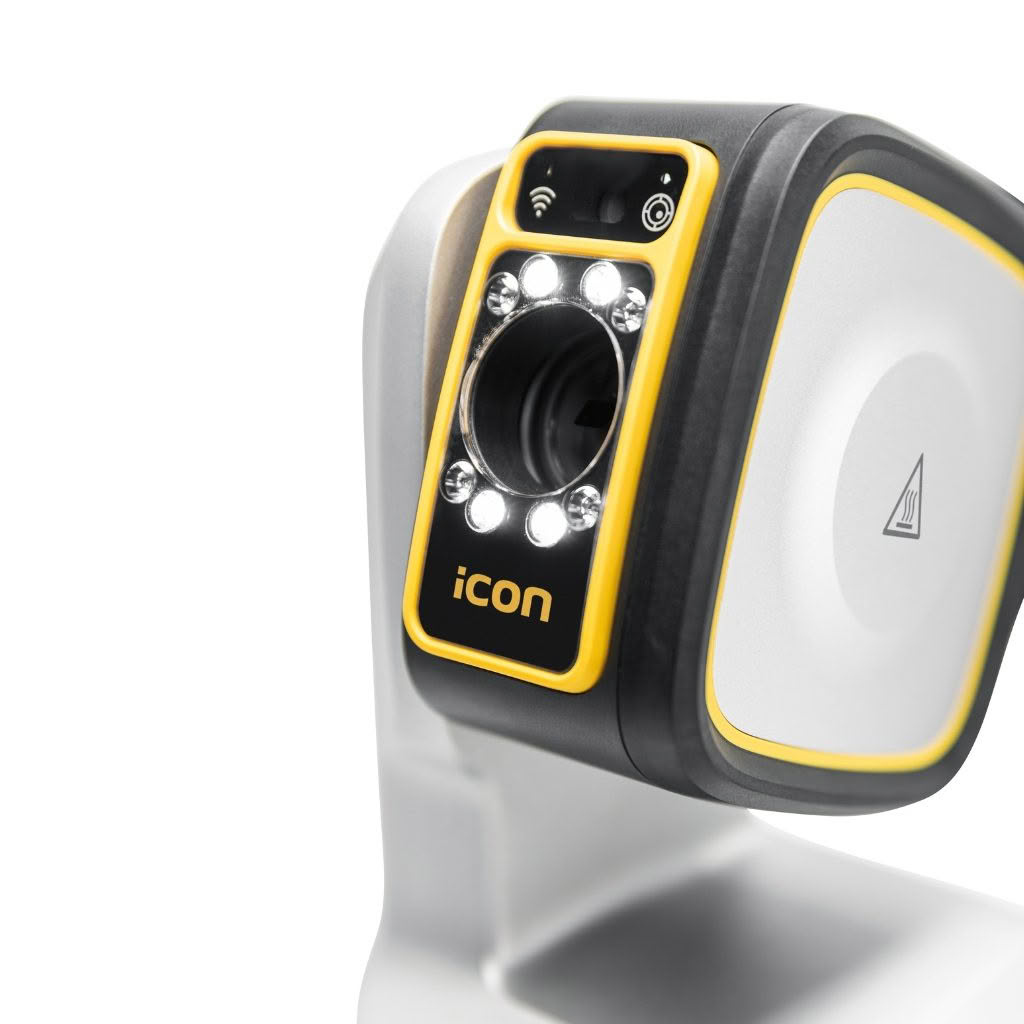

- High-resolution overview and on-axis camera for precise aiming
- Spotlight for measurements in poorly lighted environment

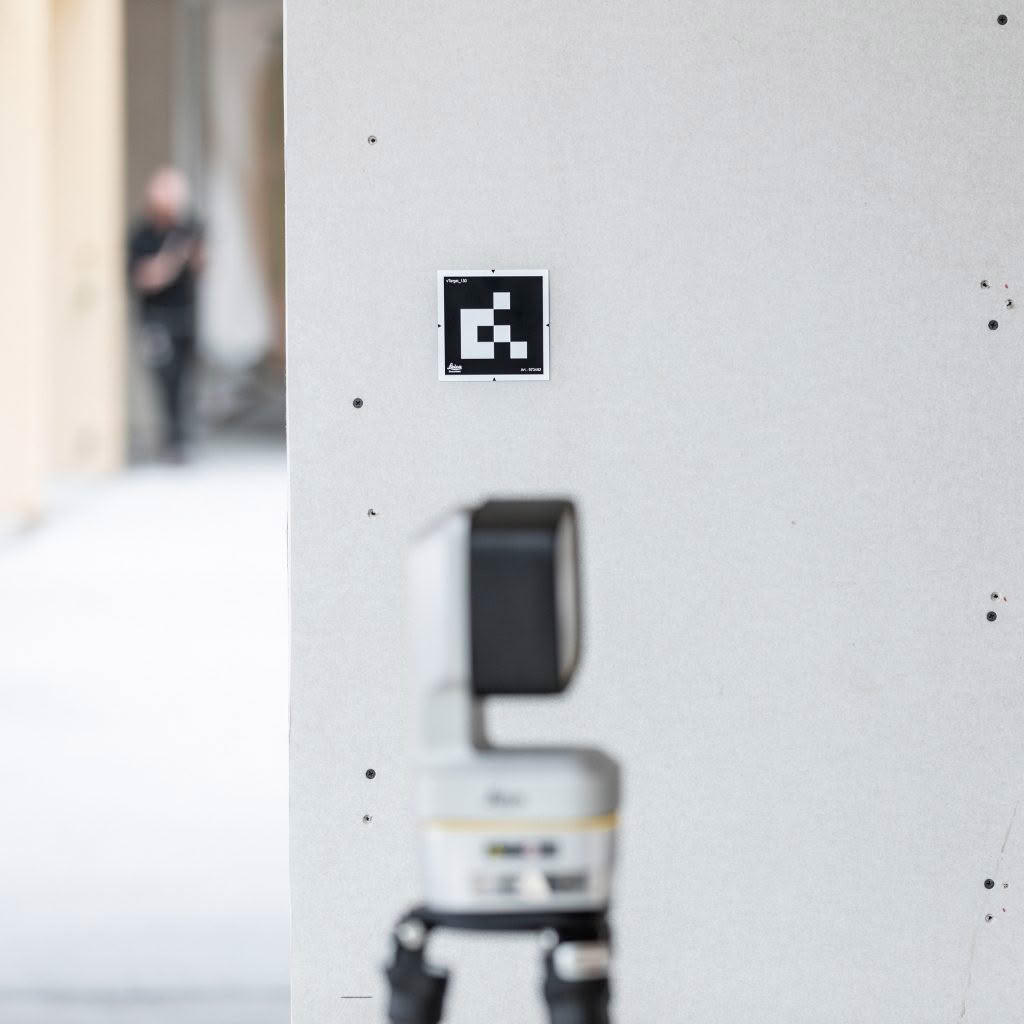

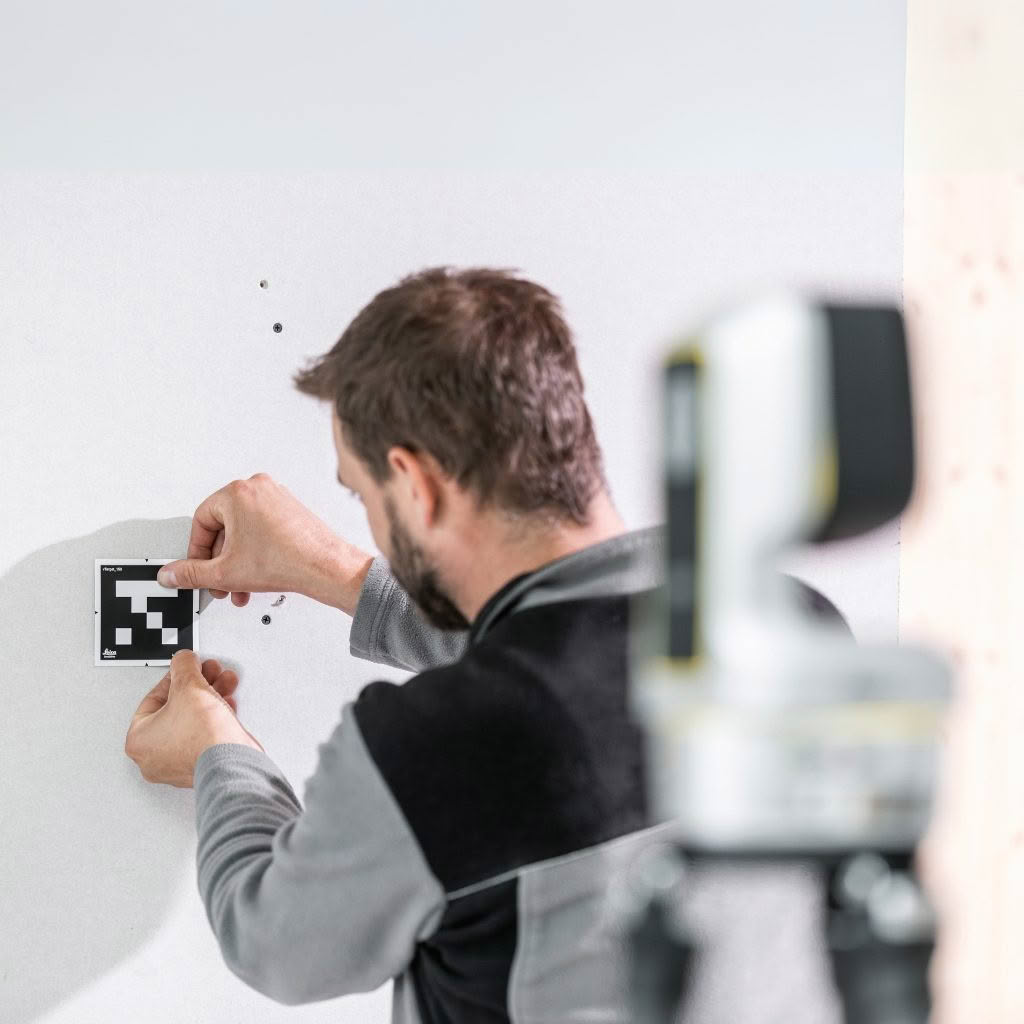

- Leica vTarget for very fast relocation
- Leica vPole with tilt compensation and auto-height detection’

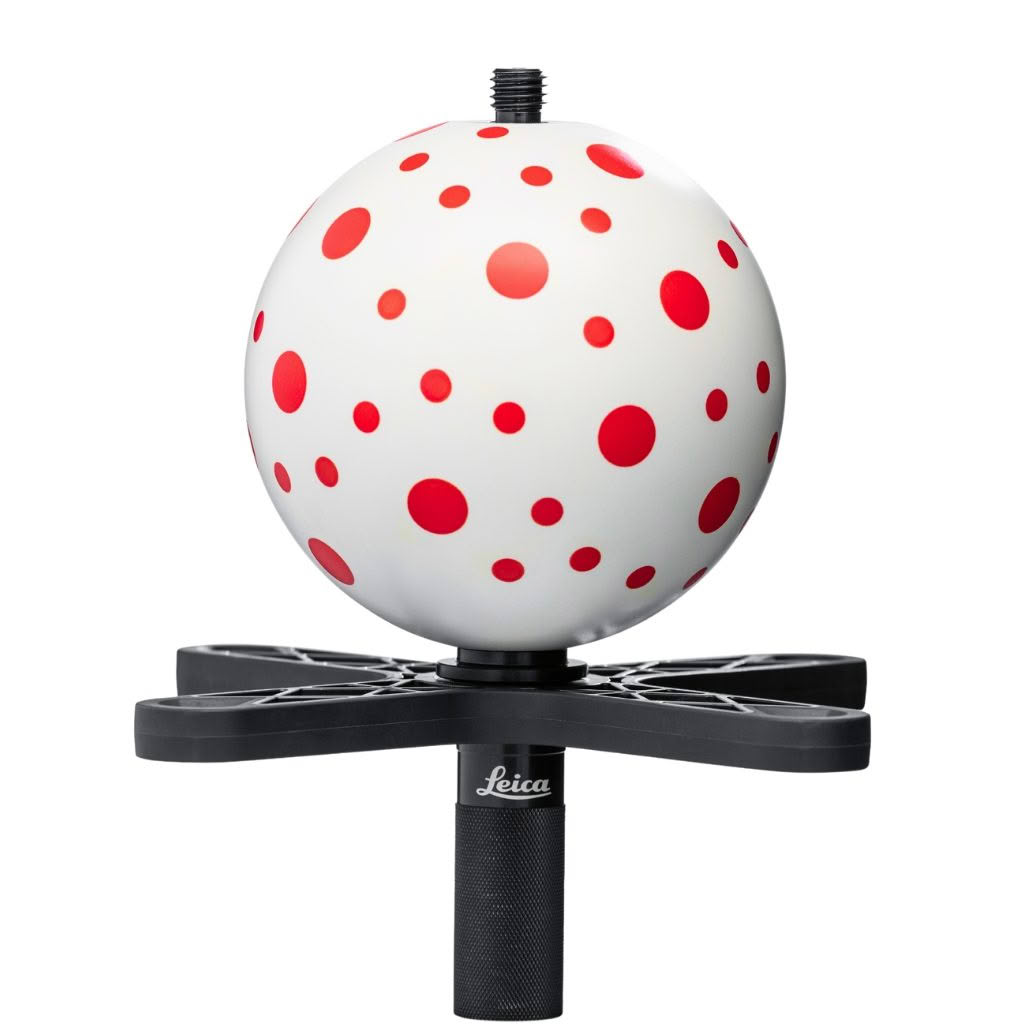

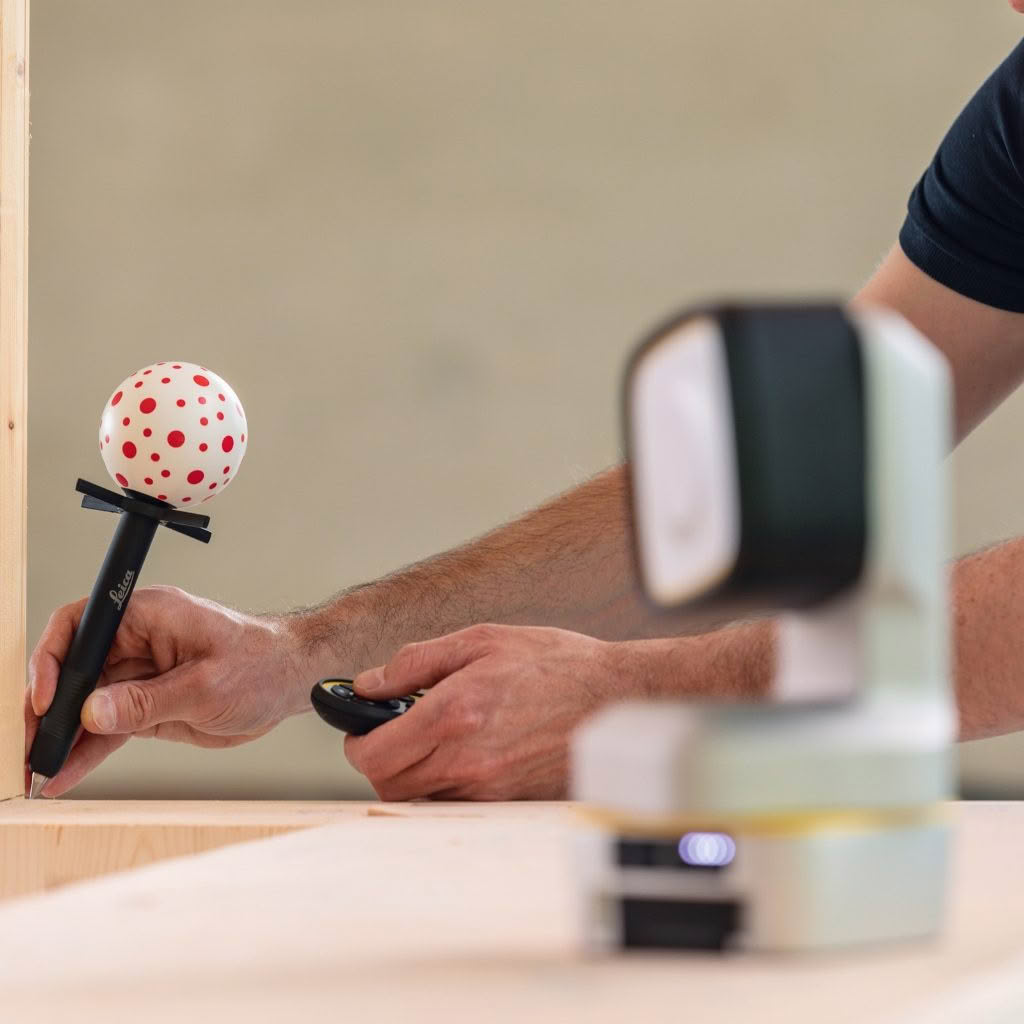

- Leica vPen for wireless, tactile measurement
- Measure on standard prism and reflective tape for positioning
- Snap-on tripod mount for fast set-up
- Auto-levelling in a range of ± 3°

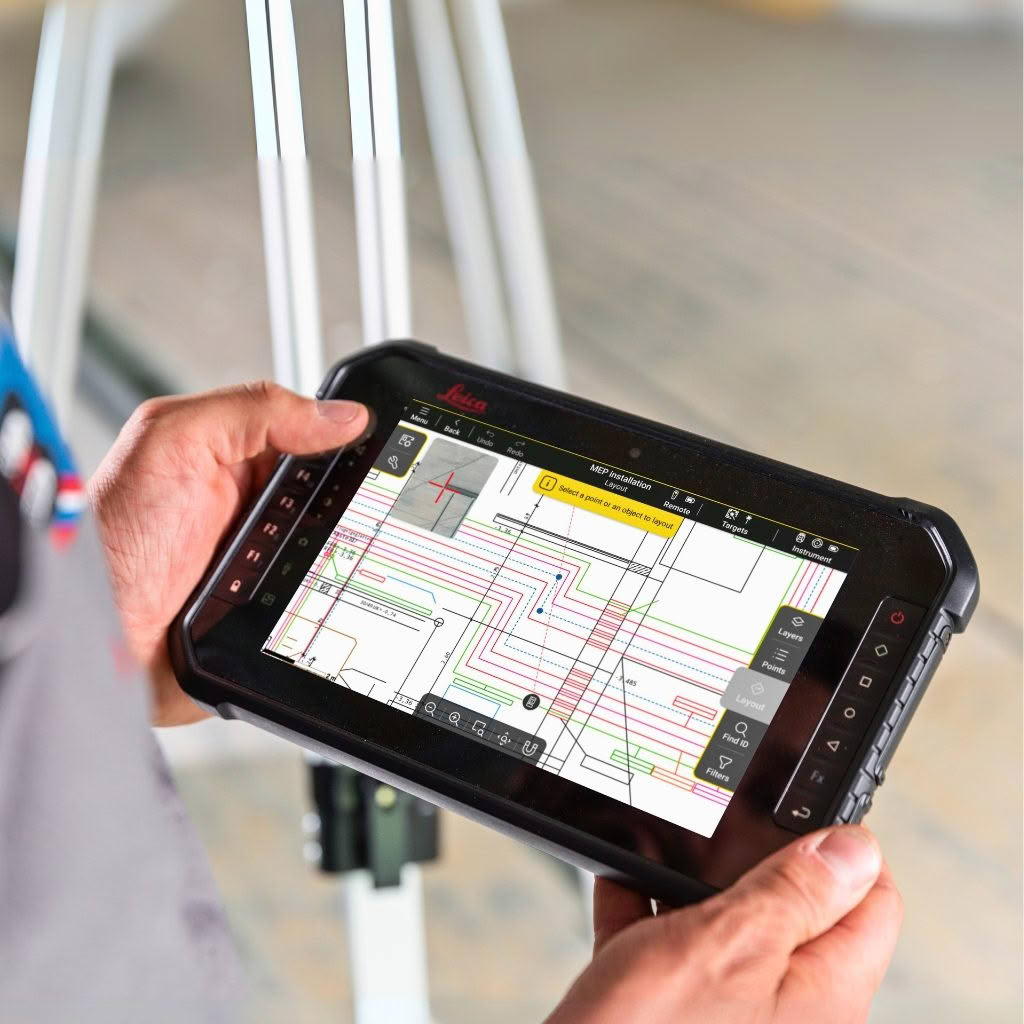

- WiFi connection to tablet
- Protection class IP54 for indoor & outdoor
- Li-Ion battery for a full working day
- Mechanical theft protection with Kensington lock
